Product Specification Sheet: 6 Mtr GI Octagonal PoleKey Technical SpecificationsParameterSpecificationHeight6 MetersMaterial GradeHigh Tensile Steel (BS EN 10025 Grade S355 / IS 2062)Cross-Section8-Sided Tapered OctagonalTop Across Flat (A/F)70 mmBottom Across Flat (A/F)130 mm to 135 mmSheet Thickness3 mm (or 2.5 mm options available)Base Plate Dimensions200 mm × 200 mm × 10–12 mmCorrosion ProtectionHot-Dip Galvanized as per IS:2629 / BS EN ISO 1461Galvanizing ThicknessMin. 65–80 MicronsFoundation Bolt Details4 Nos. × M16 J-Type Anchor BoltsPitch Circle Diameter (PCD)200 mmIntegrated Service DoorFlush-mounted, weather-proof door with earthing terminal & locking mechanism

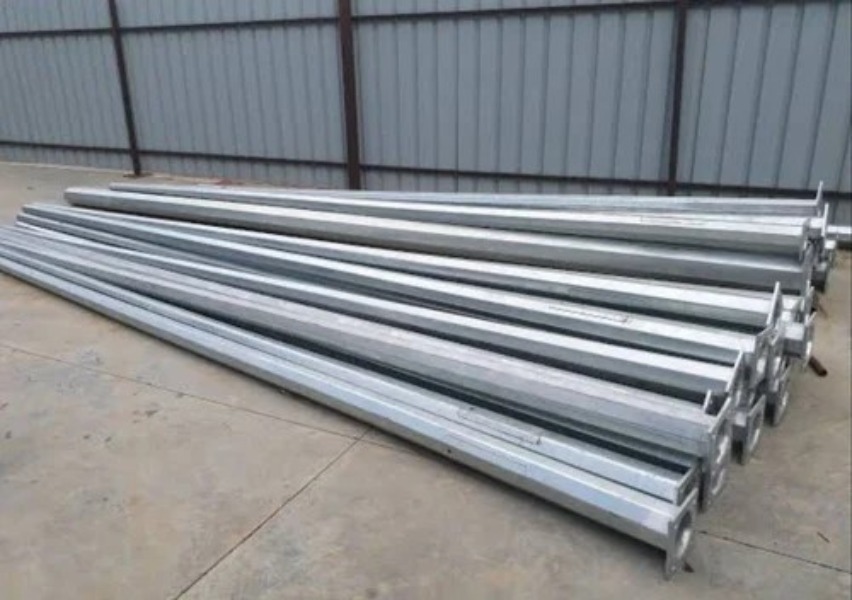

The 6-Meter Hot-Dip Galvanized Octagonal Pole is engineered for durability, wind resistance, and modern visual appeal. Manufactured using high-tensile steel sheets folded into a precise 8-sided tapered profile, it delivers superior structural strength compared to traditional circular tubular poles.
Each pole undergoes internal and external hot-dip galvanization, forming a rust-proof zinc shield that withstands harsh environmental conditions and urban pollution for 25+ years without painting or frequent maintenance.
Key Features & Highlights
Aerodynamic & Robust: The octagonal geometric profile significantly reduces wind drag and distributes structural stress uniformly across all sides.
Maximum Corrosion Protection: Complete immersion hot-dip galvanizing protects against rust, humidity, and chemical exposure.
Built-In Service Compartment: Includes a reinforced bottom door opening equipped with an earthing lug, DIN rail/MCB mounting strip, and anti-theft locking screws.
Versatile Bracket Options: Compatible with single-arm, double-arm, or post-top fixture attachments for LED luminaires or CCTV cameras.
Primary Applications
Urban & Rural Roadways: Street lighting along city roads, highways, and residential colonies.
Commercial & Industrial Complexes: Factory grounds, IT parks, logistics hubs, and warehouses.
Public Infrastructure: Fuel stations/petrol pumps, parking spaces, parks, and public plazas.
Surveillance Systems: Sturdy mounting post for CCTV cameras and security equipment.
The 6-Meter Hot-Dip Galvanized Octagonal Pole is engineered for durability, wind resistance, and modern visual appeal. Manufactured using high-tensile steel sheets folded into a precise 8-sided tapered profile, it delivers superior structural strength compared to traditional circular tubular poles.
Each pole undergoes internal and external hot-dip galvanization, forming a rust-proof zinc shield that withstands harsh environmental conditions and urban pollution for 25+ years without painting or frequent maintenance.
Key Features & Highlights
Aerodynamic & Robust: The octagonal geometric profile significantly reduces wind drag and distributes structural stress uniformly across all sides.
Maximum Corrosion Protection: Complete immersion hot-dip galvanizing protects against rust, humidity, and chemical exposure.
Built-In Service Compartment: Includes a reinforced bottom door opening equipped with an earthing lug, DIN rail/MCB mounting strip, and anti-theft locking screws.
Versatile Bracket Options: Compatible with single-arm, double-arm, or post-top fixture attachments for LED luminaires or CCTV cameras.
Primary Applications
Urban & Rural Roadways: Street lighting along city roads, highways, and residential colonies.
Commercial & Industrial Complexes: Factory grounds, IT parks, logistics hubs, and warehouses.
Public Infrastructure: Fuel stations/petrol pumps, parking spaces, parks, and public plazas.
Surveillance Systems: Sturdy mounting post for CCTV cameras and security equipment.
