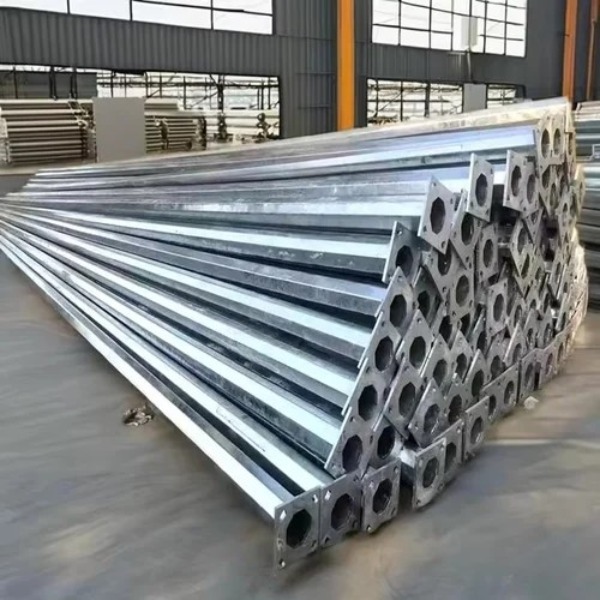

Technical Specifications Datasheet ParameterS pecification Standard / Reference Height of Pole7, 000 mm (7 Meters)IS 875 / BS EN 40Section ProfileContinuous Tapered Octagonal (8 Sided) Single-piece construction Material GradeHigh-Tensile Structural Steel (S355JR / IS 2062 E350 / E250)IS 2062 / BS EN 10025Sheet Thickness3.0 mm (Nominal)IS 1852 ToleranceTop Across Flat (A/F)70 mm—Bottom Across Flat (A/F)130 mm—Galvanization ProcessHot-Dip Galvanized in single dipBS EN ISO 1461 / IS 2629Zinc Coating ThicknessMinimum 65–85 MicronsLong-term corrosion resistanceBase Plate Size$220 times 220 times 12text{ mm}$ or $260 times 260 times 12text{ mm}$Structural Mild SteelP.C.D. (Pitch Circle Dia.)200 mm – 220 mm—Foundation Bolt Details 4 Nos. M20 / M24 $times 600text{ mm}$ (Grade 4.6 / 8.8)Galvanized with nuts & washersDoor OpeningFlush door with internal lock & earthing stud ($500text{ mm}$ height)Vandal-resistant IP65 enclosureWind Speed CapacityUp to $169text{ km/h} (47text{ m/s})$IS 875 (Part 3)Supported BracketsSingle Arm / Double Arm / Solar Panel MountsCustomized as requiredProduct Features & HighlightsSuperior Structural Rigidity: The 8-sided octagonal tapered profile provides high bending resistance and wind load stability compared to standard tubular poles.Long-Lasting Anti-Corrosion Protection: Full hot-dip galvanization inside and out prevents rusting under harsh weather conditions, coastal environments, and industrial exposure.Built-in Inspection Door: Integrated flush-fit door at the bottom offers convenient access to the MCB, terminal blocks, and cabling arrangements.Clean & Modern Aesthetic: Aerodynamic geometry and zinc-finish surface complement modern urban architecture, smart city designs, and commercial landscapes.Pre-Engineered Base Mounting: Flange base plate design allows fast anchor-bolt installation onto concrete foundations without on-site welding.
