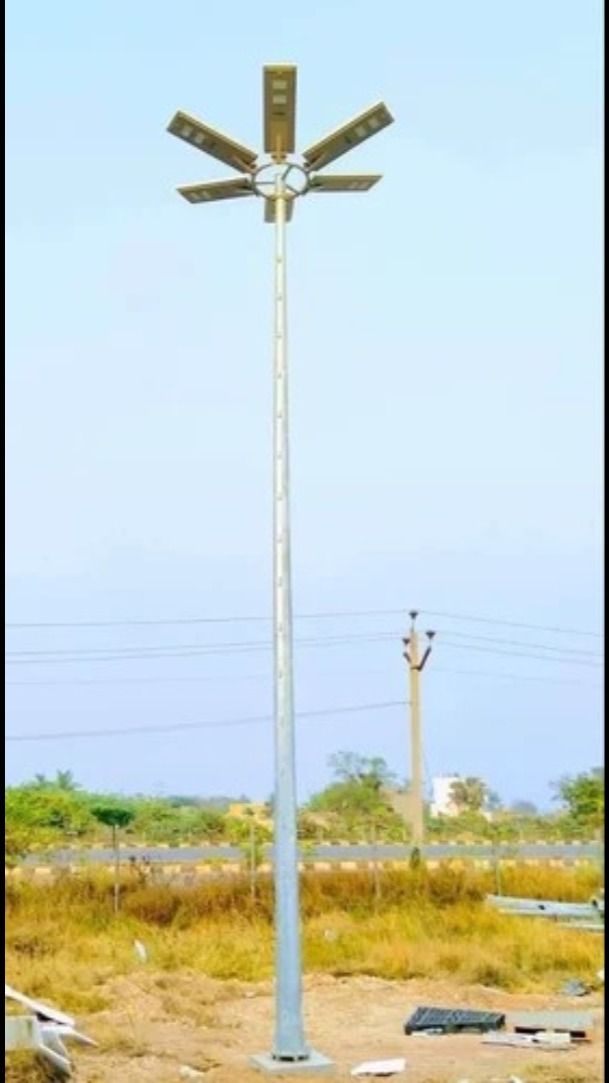

Designed for heavy-duty outdoor, commercial, and municipal illumination, this complete solar lighting set combines a 9-meter hot-dip galvanized octagonal pole with high-efficiency 70W All-in-One Solar Street Lights. Equipped with a specialized top-ring frame structure, the setup supports multi-angle or circular fixture mounting (as shown in the image), delivering high-intensity 360-degree illumination for large areas. Technical Specifications1. Octagonal Pole AssemblyHeight: 9 MetersStructure: Single/Two-section continuously tapered octagonal profileMaterial: High-tensile steel (IS 2062 / S355 grade)Galvanization: Hot-dip galvanized as per IS 2629 / BS EN ISO 1461 (minimum 86 microns coating thickness)Top Diameter: 70 mm / 90 mmBottom Diameter: 155 mm / 200 mmBase Plate: 260 mm x 260 mm x 16 mm (or standard standard anchor bolt sizing)Access Door: Flush-fit door with lockable mechanism for internal terminal accessMounting Ring / Bracket: Top circular ring assembly designed for single or radial multi-fixture light mounting 2. 70W All-in-One Solar Light LuminaireRated Output: 70 Watts LEDLuminous Efficacy: $ge 140 text{ lm/W}$Solar Panel: Integrated Monocrystalline / Polycrystalline High-Efficiency Solar ModuleBattery Type: In-built LiFePO4 (Lithium Iron Phosphate) battery pack (3.2V / 12.8V high capacity)Charge Controller: Smart MPPT / PWM controller with automatic dusk-to-dawn sensor and dimming profilesMotion Sensor: Integrated PIR/Radar motion sensor (optional power-saving dynamic mode)Housing Body: Weatherproof die-cast aluminum with IP65 / IP66 ingress protection ratingColor Temperature (CCT): 5700K – 6500K (Cool White)Key Features & BenefitsAll-Weather Corrosion Protection: Hot-dip galvanization protects the pole against rust, environmental wear, and coastal atmospheric conditions for up to 25 years.Integrated Plug-and-Play Design: All-in-One solar luminaires combine solar panel, LiFePO4 battery, LED driver, and sensor into a single unit—eliminating external battery boxes or underground wiring.Flexible Multi-Fixture Configurations: Top ring structure accommodates flexible light placement, allowing single-arm roadway layouts or multi-directional radial cluster setups. Zero Electricity Cost: Fully off-grid solar operation reduces utility overheads and installation downtime.Low Maintenance: Long-life LiFePO4 battery technology ensures 5+ years of operational life without frequent battery replacements.Applications Highways, Expressways & Main City RoadsIndustrial Complexes, Warehouses & Factory CompoundsSmart City Infrastructures & Public ParksCommercial Parking Lots & Open Field IlluminationToll Plazas & Traffic JunctionsPackage Inclusions9m Hot-Dip Galvanized Octagonal Pole (with base plate)Top Circular Mounting Ring Bracket 70W All-in-One Solar Street Light Luminaire(s)Foundation J-Bolts, Nuts, and Washer Hardware Set
