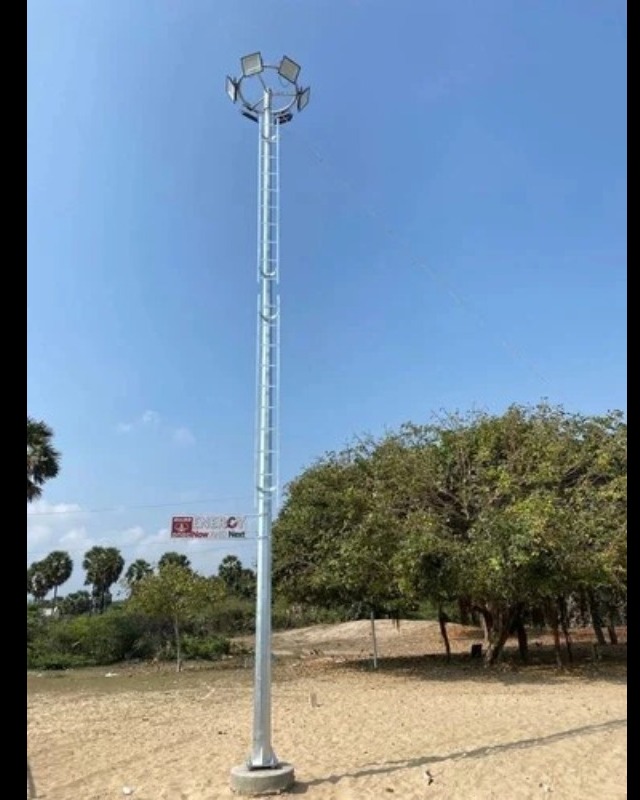

The 12m Hot-Dip Galvanized Octagonal Ladder Pole with 4-Arm Bracket is designed for high-area outdoor illumination, industrial sites, sports venues, junctions, and commercial facilities. Constructed from high-strength structural steel, this pole features a continuously tapered 8-sided profile designed to resist high wind speeds.It features an integrated external access ladder with a safety ring frame/cage, enabling safe manual maintenance of floodlights or luminaire fixtures without the need for hydraulic lift trucks. The top assembly includes a detachable 4-arm bracket frame, providing $360^circ$ symmetric or directional light distribution. Key Technical SpecificationsParameterTechnical SpecificationHeight12 Meters (Shaft: 1 or 2 segments)Pole GeometryTapered Octagonal (8-Sided)Material GradeHigh Tensile Steel (IS 5986 / S355 / Fe 510 or equivalent)Sheet Thickness3.0 mm – 4.0 mmTop Across Flats (A/F)90 mm – 100 mmBottom Across Flats (A/F)210 mm – 240 mmBase Plate Size300 mm $times$ 300 mm to 350 mm $times$ 350 mm (Thickness: 16 mm – 25 mm)Surface ProtectionHot-Dip Galvanized as per IS 2629 / BS EN ISO 1461 (Min. 65–85 Microns)Access LadderHeavy-duty GI ladder with protective safety rungs/cage Bracket Assembly4-Arm symmetric/custom arrangement for LED floodlights Foundation Fasteners4 Nos. Galvanized J-Type Anchor Bolts Wind Load Capacity Up to 180 km/h (customizable based on zone)In-Built Features Flush-fit lockable service door at bottom with earthing terminal Core Features & Advantages Heavy -Duty Structural Integrity: Continuous taper and octagonal cross-section minimize wind resistance while distributing structural stress evenly.Built-In Ladder & Safety Frame: Eliminates maintenance downtime; maintenance crews can directly access the top ring/fixtures via the integrated ladder. 360° Illumination Spread: The rigid 4-arm bracket design securely mounts up to 4 high-wattage LED floodlights or streetlights. Superior Corrosion Resistance: Full hot-dip galvanization (inside and outside) guarantees a rust-free lifespan of 25+ years even in harsh outdoor and industrial environments. Low Maintenance Door Provision: Weatherproof access door near the base facilitates quick access to cutouts, MCBs, and wiring connections.
