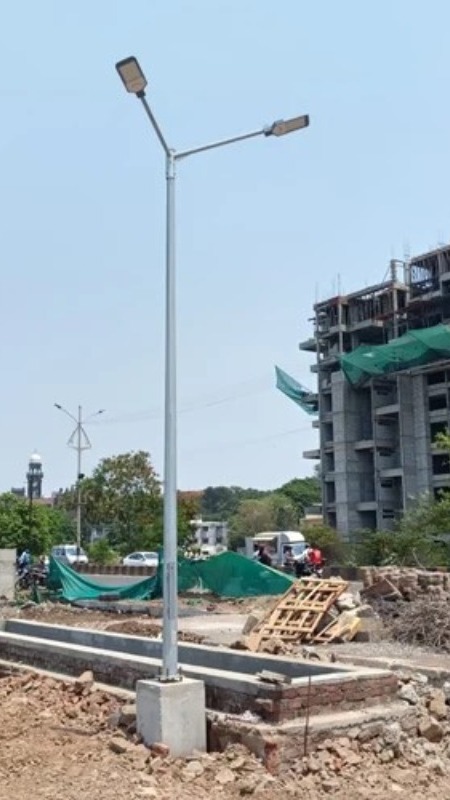

Engineered for dual-side illumination, this 6-meter galvanized octagonal pole features a double-arm bracket configuration ideal for dual-carriageway roads, wide municipal avenues, commercial complexes, and industrial parks. Manufactured from high-tensile steel, it offers exceptional structural integrity, aerodynamic stability, and long-term corrosion resistance.Technical Specifications TableParameterSpecification DetailsHeight6 MetersCross Section8-Sided Octagonal (Continuous Taper)Material GradeHigh-Tensile Steel (IS 2062 / BS EN 10025 Grade S355 / S275)GalvanizationHot-Dip Galvanized (70–86 Microns Coating Thickness as per IS 2629 / BS EN ISO 1461)Top Diameter70 mmBottom Diameter130 mm – 135 mmSheet Thickness3 mmBase Plate Dimensions200 mm × 200 mm × 12 mm / 220 mm × 220 mm × 14 mmBracket ConfigurationDouble Arm (V-Type / Twin Arm) for Dual Streetlight LuminairesArm Outreach0.5 m to 1.0 m per side (Customizable)Access Door / HatchFlush-Type Service Door at Base with Vandal-Resistant Locking & Terminal Box Mounting BracketDesign Wind SpeedUp to 180 km/h (Complying with IS 875 Part 3)Anchor Bolts4 Nos. High-Tensile Foundation J-Bolts with Nuts & WashersKey Features & BenefitsDual Directional Illumination: Twin-arm bracket symmetry allows wide, uniform light distribution across both lanes or adjacent pathways from a single installation point.Superior Corrosion Protection: Hot-dip galvanizing protects against rust, severe weathering, and environmental wear, eliminating the need for frequent repainting.Optimized Wind Resistance: Tapered octagonal geometry distributes wind pressure evenly, ensuring high structural stability under extreme weather conditions.Clean Maintenance Access: Integrated base door provides easy access to terminal blocks, MCBs, and cable terminations without compromising aesthetics.Versatile Compatibility: Compatible with standard LED streetlight fixtures, solar luminaires, and smart lighting controls.Key Applications Dual - carriageway urban roads and municipal streets Industrial zone internal roadways and plant premises Commercial center parking lots and plaza campuses, residential townships, and highway service lanes
