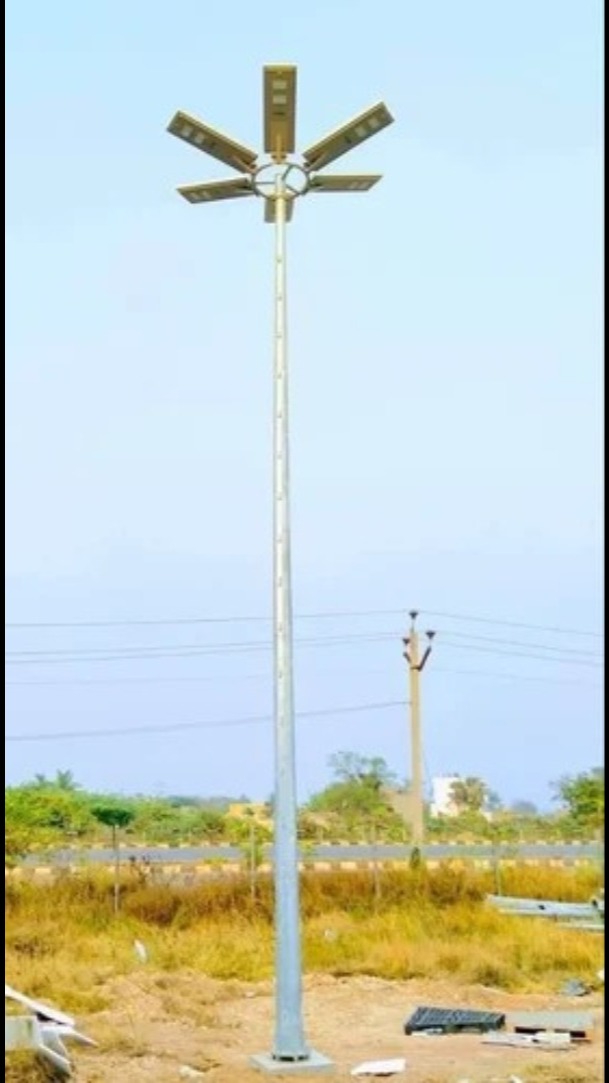

Engineered for heavy-duty outdoor illumination, this 9-meter hot-dip galvanized octagonal pole features a multi-fixture solar lighting ring designed to accommodate 100W All-In-One solar street lights. Built to withstand harsh environmental conditions while delivering high-intensity, zero-electricity lighting coverage across large open areas, highways, and industrial hubs.
Technical Specifications
Octagonal Pole Details
Parameter Specification
Height 9 Meters
Structure Type Tapered Octagonal Section
Material Grade High-tensile steel (IS 2062 Grade E250 / E350)
Coating / Finishing Hot-Dip Galvanized (minimum 86 microns as per IS 4759 / IS 2629)
Top Diameter 70 mm – 90 mm (customizable based on ring load)
Bottom Diameter 150 mm – 200 mm
Base Plate Size 260 mm × 260 mm × 16 mm (or custom site spec)
Door / Maintenance Panel Flush-type bottom door for access and junction box mounting
Wind Resistance Designed to withstand wind speeds up to 180 km/h
Solar Light Configuration
Parameter Specification
Luminaires 100W All-In-One Solar Street Light Units
Ring Arrangement Circular multi-arm crown frame (3 to 6 fixture options)
Solar Panel Integrated Mono/Poly Crystalline Silicon Panel
Battery Type Integrated LiFePO4 (Lithium Iron Phosphate)
LED Chip / Efficacy High-lumen SMD LEDs (130–160 lm/W)
Light Control Dusk-to-Dawn Automatic Sensor + Motion/Dimming Profiles
Ingress Protection IP65 / IP66 Weatherproof Outer Housing
Key Features
360-Degree Uniform Coverage: The custom ring structure mounts multiple 100W integrated solar lights outward, maximizing perimeter reach and eliminating blind spots in large fields.
Corrosion-Resistant Galvanization: Hot-dip galvanization ensures protection against rust, industrial fumes, and extreme outdoor weathering for a lifespan exceeding 25 years.
Zero Utility Costs: Fully solar-driven system eliminates cabling work, grid power connection fees, and recurring monthly electricity bills.
Low Maintenance: Built-in LiFePO4 battery pack and solid-state LED fixtures reduce component maintenance and ensure long discharge cycles.
Target Applications
Highways, Expressways & Intersections
Industrial Complexes & Logistics Parks
Open Storage Yards & Rural Junctions
Commercial Complexes, Institutions & Stadium Outer Grounds
Municipal & Smart City Infrastructure Projects
Technical Specifications
Octagonal Pole Details
Parameter Specification
Height 9 Meters
Structure Type Tapered Octagonal Section
Material Grade High-tensile steel (IS 2062 Grade E250 / E350)
Coating / Finishing Hot-Dip Galvanized (minimum 86 microns as per IS 4759 / IS 2629)
Top Diameter 70 mm – 90 mm (customizable based on ring load)
Bottom Diameter 150 mm – 200 mm
Base Plate Size 260 mm × 260 mm × 16 mm (or custom site spec)
Door / Maintenance Panel Flush-type bottom door for access and junction box mounting
Wind Resistance Designed to withstand wind speeds up to 180 km/h
Solar Light Configuration
Parameter Specification
Luminaires 100W All-In-One Solar Street Light Units
Ring Arrangement Circular multi-arm crown frame (3 to 6 fixture options)
Solar Panel Integrated Mono/Poly Crystalline Silicon Panel
Battery Type Integrated LiFePO4 (Lithium Iron Phosphate)
LED Chip / Efficacy High-lumen SMD LEDs (130–160 lm/W)
Light Control Dusk-to-Dawn Automatic Sensor + Motion/Dimming Profiles
Ingress Protection IP65 / IP66 Weatherproof Outer Housing
Key Features
360-Degree Uniform Coverage: The custom ring structure mounts multiple 100W integrated solar lights outward, maximizing perimeter reach and eliminating blind spots in large fields.
Corrosion-Resistant Galvanization: Hot-dip galvanization ensures protection against rust, industrial fumes, and extreme outdoor weathering for a lifespan exceeding 25 years.
Zero Utility Costs: Fully solar-driven system eliminates cabling work, grid power connection fees, and recurring monthly electricity bills.
Low Maintenance: Built-in LiFePO4 battery pack and solid-state LED fixtures reduce component maintenance and ensure long discharge cycles.
Target Applications
Highways, Expressways & Intersections
Industrial Complexes & Logistics Parks
Open Storage Yards & Rural Junctions
Commercial Complexes, Institutions & Stadium Outer Grounds
Municipal & Smart City Infrastructure Projects
